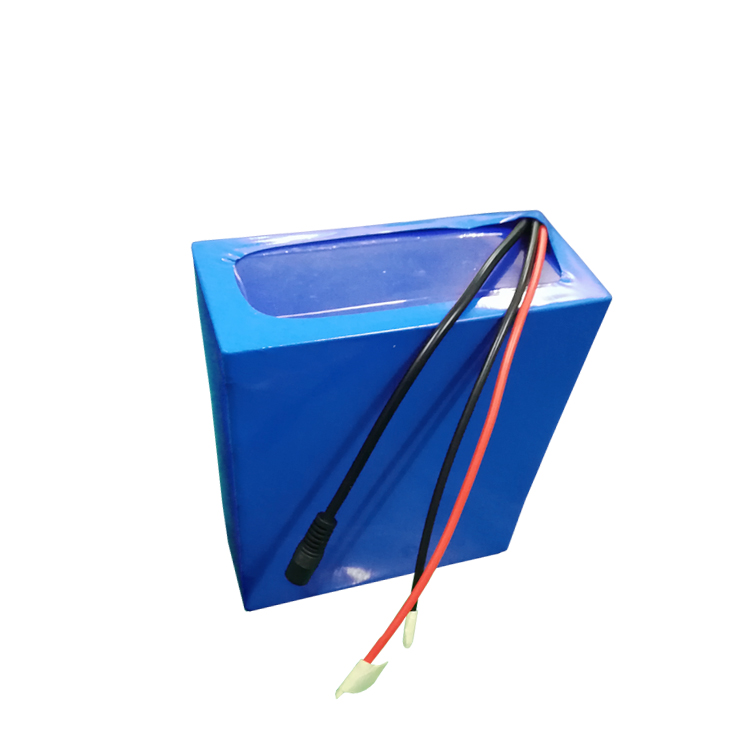

48V 20.8AH 13S8P Lithium ion Battery Pack
13S8PLi-ionOEM / ODM
This 48V 20Ah Li-ion battery pack (13S8P) is built by Jetray Battery for e-bikes and e-scooters, electric motorcycles and mopeds, golf carts and low-speed vehicles. Cells, BMS settings, connector, wiring and housing can all be built to your specification.
Specifications
Technical data
Standard model values. Every parameter below can be adjusted for your project.
Configuration13S8P
Nominal Voltage48V
Capacity20Ah
Battery Model48V 20.8Ah
ChemistryLi-ion
Shipment Voltage48.0–49.4V
Charge Cut-off Voltage54.6V
Discharge Cut-off Voltage32.5V
Internal Resistance≤200mΩ
Max Charge Current15A
Max Continuous Discharge Current20A
WeightAbout 5.2kg
BMS / ProtectionShort-circuit protection
Voltage window 32.5 – 54.6 V
32.5 V cut-off48 V nominal54.6 V full
Need different specs?
Send your voltage, capacity, current and size limits. We build packs to your drawing.
Runtime estimator
Size the pack to your load
Enter your load and the number of packs in parallel to estimate current, C-rate and runtime.
W
System: 48 V · 20 Ah · 960 Wh
–Current (A)
–C-rate
–Est. runtime
0.5C1C
Ideal estimate at nominal voltage and capacity; reference rate 1C (from the listed discharge current). Real results vary with temperature, cell age and cut-off settings. Packs in parallel must be matched — ask our engineers first.
Applications
Where it is used
E-bikes and e-scooters
Electric motorcycles and mopeds
Golf carts and low-speed vehicles
AGVs, robots and mobility devices
Customization & BMS
Built around your equipment
Voltage, capacity, size, BMS and communication can all be changed for OEM / ODM projects. Start from this model or from your own drawing.
FAQ & safety
Common questions
We offer Li-ion (NCM / NCA), LiFePO4 and LTO cells, chosen to match your project needs.
Yes. We provide structural design so the pack fits your housing, connector and mounting points.
Overcharge, over-discharge, overcurrent, short-circuit and temperature protection, SOC / SOH display and communication protocols such as CAN and RS485.
Yes. Charging rates from 0.5C to 2C are possible, depending on the cell specification.
Typically 12–36 months, depending on the project agreement.
Keep them at 50–60% state of charge in a dry, ventilated place between −10 °C and 35 °C.
Safe handling
Heat and damage
Never heat, disassemble or modify the battery, or dispose of it in a fire. Do not pierce, hit, step on or drop it.
If fluid leaks
Do not touch it with bare hands. Rinse eyes, mouth or skin with clean water, see a doctor if needed and contact Jetray after-sales.
Keep it dry
Do not get the battery wet.
Storage conditions
Do not use or store the battery in direct sunlight, high heat or humidity, a hot car, or near heat sources.
