2s Li Ion Polymer 7.4V 2000mah
Lithium Polymer Cells

2s Li Ion Polymer 7.4V 2000mah

2SLi-ion polymerOEM / ODM

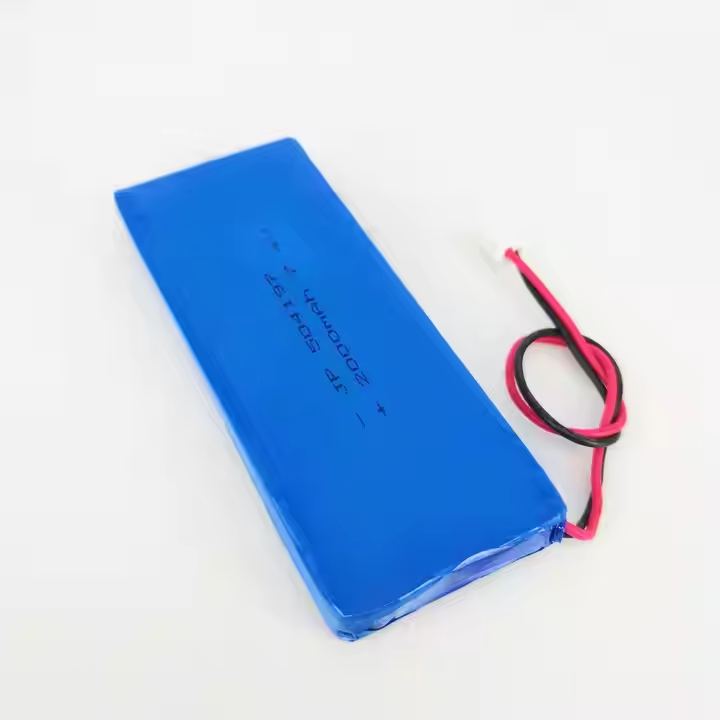

This 7.4V 2000mAh Li-ion polymer battery pack (2S) is built by Jetray Battery for drones and RC models, wearables and portable electronics, medical and handheld devices. Cells, BMS settings, connector, wiring and housing can all be built to your specification.

  • Nominal voltage7.4V
  • Capacity2Ah
  • Energy14.8Wh
  • Cycle life500Times
  • Fully customizableVoltage, capacity, BMS, housing
  • Documents readyDatasheet, MSDS, UN38.3
  • 24-hour replyDirect from our engineers
Specifications

Technical data

Standard model values. Every parameter below can be adjusted for your project.

Configuration2S
Nominal Voltage7.4V
Capacity2000mAh
Battery ModelJP504095-2S
ChemistryLi-ion polymer
Cycle Life500 Times
DimensionsPrismatic
Weight36g
BMS / ProtectionSeiko or customized
CertificationCE/RoHS/UN38.3/MSDS
Warranty12 Months
Need different specs?

Send your voltage, capacity, current and size limits. We build packs to your drawing.

Applications

Where it is used

Drones and RC models
Wearables and portable electronics
Medical and handheld devices
Robotics and smart devices
Customization & BMS

Built around your equipment

Voltage, capacity, size, BMS and communication can all be changed for OEM / ODM projects. Start from this model or from your own drawing.

FAQ & safety

Common questions

We offer Li-ion (NCM / NCA), LiFePO4 and LTO cells, chosen to match your project needs.

Yes. We provide structural design so the pack fits your housing, connector and mounting points.

Overcharge, over-discharge, overcurrent, short-circuit and temperature protection, SOC / SOH display and communication protocols such as CAN and RS485.

Yes. Charging rates from 0.5C to 2C are possible, depending on the cell specification.

Typically 12–36 months, depending on the project agreement.

Keep them at 50–60% state of charge in a dry, ventilated place between −10 °C and 35 °C.

Safe handling

Heat and damage

Never heat, disassemble or modify the battery, or dispose of it in a fire. Do not pierce, hit, step on or drop it.

If fluid leaks

Do not touch it with bare hands. Rinse eyes, mouth or skin with clean water, see a doctor if needed and contact Jetray after-sales.

Keep it dry

Do not get the battery wet.

Storage conditions

Do not use or store the battery in direct sunlight, high heat or humidity, a hot car, or near heat sources.
