4S2P
Lead-Acid Replacement Battery Packs
12V 200Ah LiFePO4 Lithium Battery
LiFePO4OEM / ODM

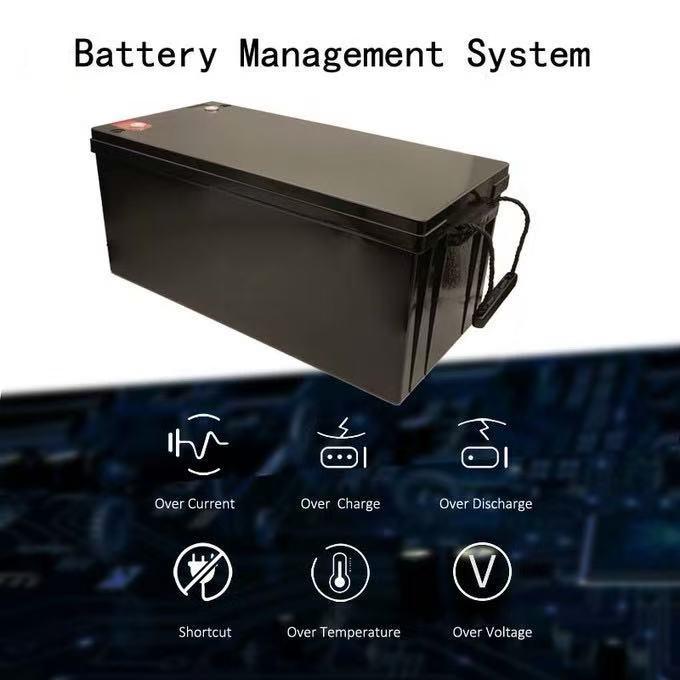

This 12.8V 200Ah LiFePO4 battery from Jetray Battery comes with a built-in BMS and is designed for drop-in replacement of 12V lead-acid / AGM batteries, RVs, campers and marine use, solar lighting and off-grid power. Capacity, communication protocol, terminals and enclosure can be configured for your system.
Specifications
Technical data
Standard model values. Every parameter below can be adjusted for your project.
Nominal Voltage12.8V
Capacity200Ah
ChemistryLiFePO4
Operating Voltage10V ~ 14.6V
Standard Discharge Current0.5C
Max Continuous Discharge Current1.0C
Dimensions522 × 240 × 218 mm
Charging Temperature0℃ ~ 50℃
Discharging Temperature-20℃ ~ 50℃
Voltage window 10 – 14.6 V
10 V cut-off12.8 V nominal14.6 V full
Temperature window °C
Charging0 to 50 °C
Discharging-20 to 50 °C
-201550
Need different specs?
Send your voltage, capacity, current and size limits. We build packs to your drawing.
Runtime estimator
Size the pack to your load
Enter your load and the number of packs in parallel to estimate current, C-rate and runtime.
W
System: 12.8 V · 200 Ah · 2560 Wh
–Current (A)
–C-rate
–Est. runtime
0.5C1C
Ideal estimate at nominal voltage and capacity; reference rate 1C (from the listed discharge current). Real results vary with temperature, cell age and cut-off settings. Packs in parallel must be matched — ask our engineers first.
Applications
Where it is used
Drop-in replacement of 12V lead-acid / AGM batteries
RVs, campers and marine use
Solar lighting and off-grid power
UPS and emergency backup
Customization & BMS
Built around your equipment
Voltage, capacity, size, BMS and communication can all be changed for OEM / ODM projects. Start from this model or from your own drawing.
FAQ & safety
Common questions
We offer Li-ion (NCM / NCA), LiFePO4 and LTO cells, chosen to match your project needs.
Yes. We provide structural design so the pack fits your housing, connector and mounting points.
Overcharge, over-discharge, overcurrent, short-circuit and temperature protection, SOC / SOH display and communication protocols such as CAN and RS485.
Yes. Charging rates from 0.5C to 2C are possible, depending on the cell specification.
Typically 12–36 months, depending on the project agreement.
Keep them at 50–60% state of charge in a dry, ventilated place between −10 °C and 35 °C.
Safe handling
Heat and damage
Never heat, disassemble or modify the battery, or dispose of it in a fire. Do not pierce, hit, step on or drop it.
If fluid leaks
Do not touch it with bare hands. Rinse eyes, mouth or skin with clean water, see a doctor if needed and contact Jetray after-sales.
Keep it dry
Do not get the battery wet.
Storage conditions
Do not use or store the battery in direct sunlight, high heat or humidity, a hot car, or near heat sources.
