11.1V 10Ah 3S2P Samsung 50E Cell Rechargeable Lithium ion Battery
Custom Lithium Battery Packs

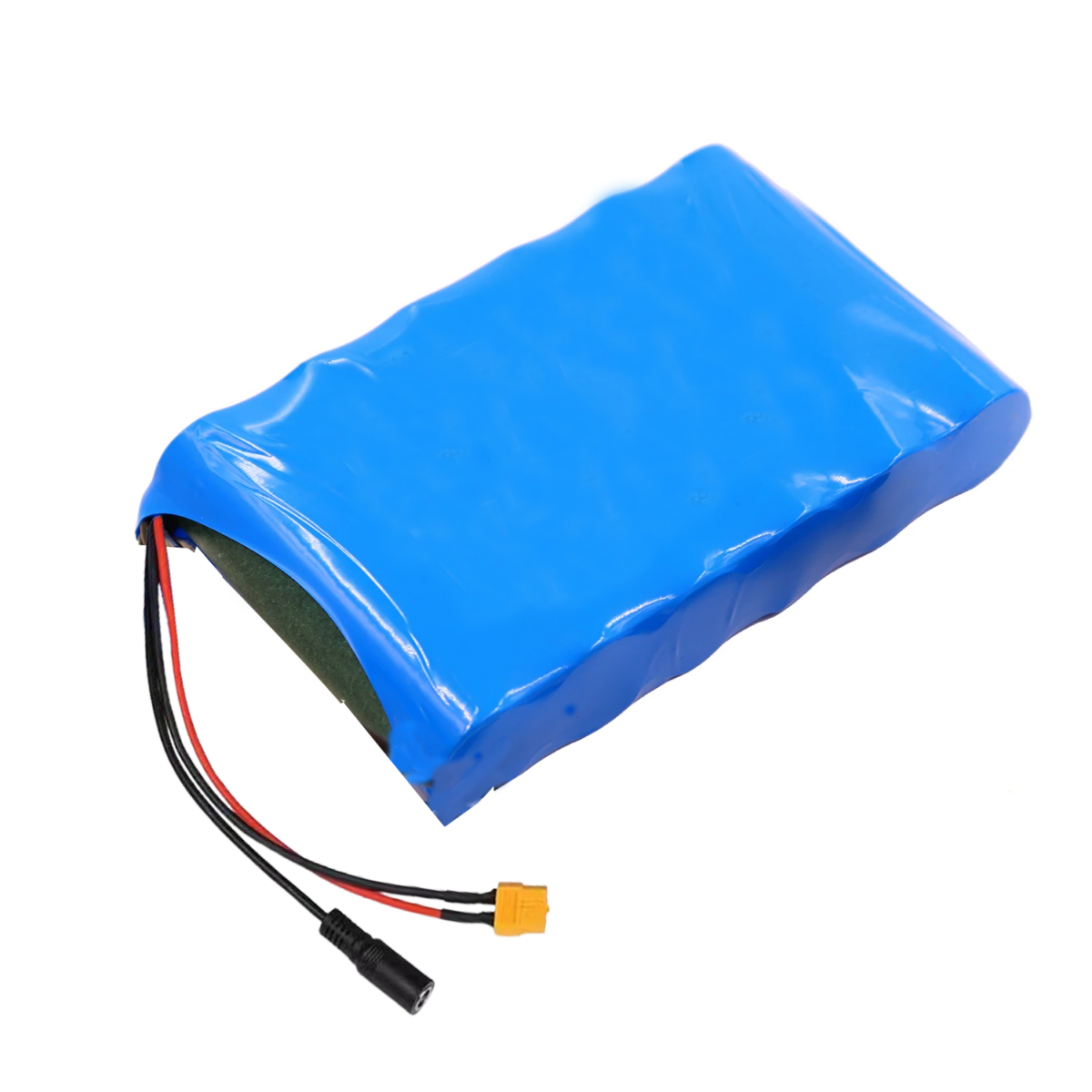

11.1V 10Ah 3S2P Samsung 50E Cell Rechargeable Lithium ion Battery

3S2PLi-ionSamsung 50EOEM / ODM

This 11.1V 10Ah Li-ion battery pack (3S2P) is built by Jetray Battery for portable instruments and test equipment, medical and monitoring devices, power tools and garden tools. Cells, BMS settings, connector, wiring and housing can all be built to your specification.

  • Nominal voltage11.1V
  • Capacity10Ah
  • Energy111Wh
  • Cycle life500(80%)
  • Fully customizableVoltage, capacity, BMS, housing
  • Documents readyDatasheet, MSDS, UN38.3
  • 24-hour replyDirect from our engineers
Specifications

Technical data

Standard model values. Every parameter below can be adjusted for your project.

Configuration3S2P
Nominal Voltage11.1V
Capacity10Ah
Battery Model11.1V 10Ah
ChemistryLi-ion
CellSamsung 50E
Cycle Life500(80%)
Dimensions129*22*78 mm
Weight430g
BMS / ProtectionCan be changed
Charging Temperature0~45ºC
Discharging Temperature-20~60ºC
Storage Temperature1 year: -20~25°C; 3 months: -20~45°C; 1 month: -20~60°C
ConnectorJST/Molex/DC5521 or Custom
Charge Voltage/Current12.6V ≤10 A (can be customized)
Discharge Voltage/Current11.1V ≤20 A (can be customized)

Temperature window °C

Charging0 to 45 °C
Discharging-20 to 60 °C
Storage-20 to 25 °C
-202060
Need different specs?

Send your voltage, capacity, current and size limits. We build packs to your drawing.

Runtime estimator

Size the pack to your load

Enter your load and the number of packs in parallel to estimate current, C-rate and runtime.

W

System: 11.1 V · 10 Ah · 111 Wh

–Current (A)
–C-rate
–Est. runtime
0.5C1C

Ideal estimate at nominal voltage and capacity; reference rate 1C (assumed). Real results vary with temperature, cell age and cut-off settings. Packs in parallel must be matched — ask our engineers first.

Applications

Where it is used

Portable instruments and test equipment
Medical and monitoring devices
Power tools and garden tools
Lighting, security and consumer electronics
Customization & BMS

Built around your equipment

Voltage, capacity, size, BMS and communication can all be changed for OEM / ODM projects. Start from this model or from your own drawing.

FAQ & safety

Common questions

We offer Li-ion (NCM / NCA), LiFePO4 and LTO cells, chosen to match your project needs.

Yes. We provide structural design so the pack fits your housing, connector and mounting points.

Overcharge, over-discharge, overcurrent, short-circuit and temperature protection, SOC / SOH display and communication protocols such as CAN and RS485.

Yes. Charging rates from 0.5C to 2C are possible, depending on the cell specification.

Typically 12–36 months, depending on the project agreement.

Keep them at 50–60% state of charge in a dry, ventilated place between −10 °C and 35 °C.

Safe handling

Heat and damage

Never heat, disassemble or modify the battery, or dispose of it in a fire. Do not pierce, hit, step on or drop it.

If fluid leaks

Do not touch it with bare hands. Rinse eyes, mouth or skin with clean water, see a doctor if needed and contact Jetray after-sales.

Keep it dry

Do not get the battery wet.

Storage conditions

Do not use or store the battery in direct sunlight, high heat or humidity, a hot car, or near heat sources.

OEM & custom packs

Ready to power your next project?

Tell us your voltage, capacity, size and application. Our engineers reply within 24 hours with a design proposal and quotation.
