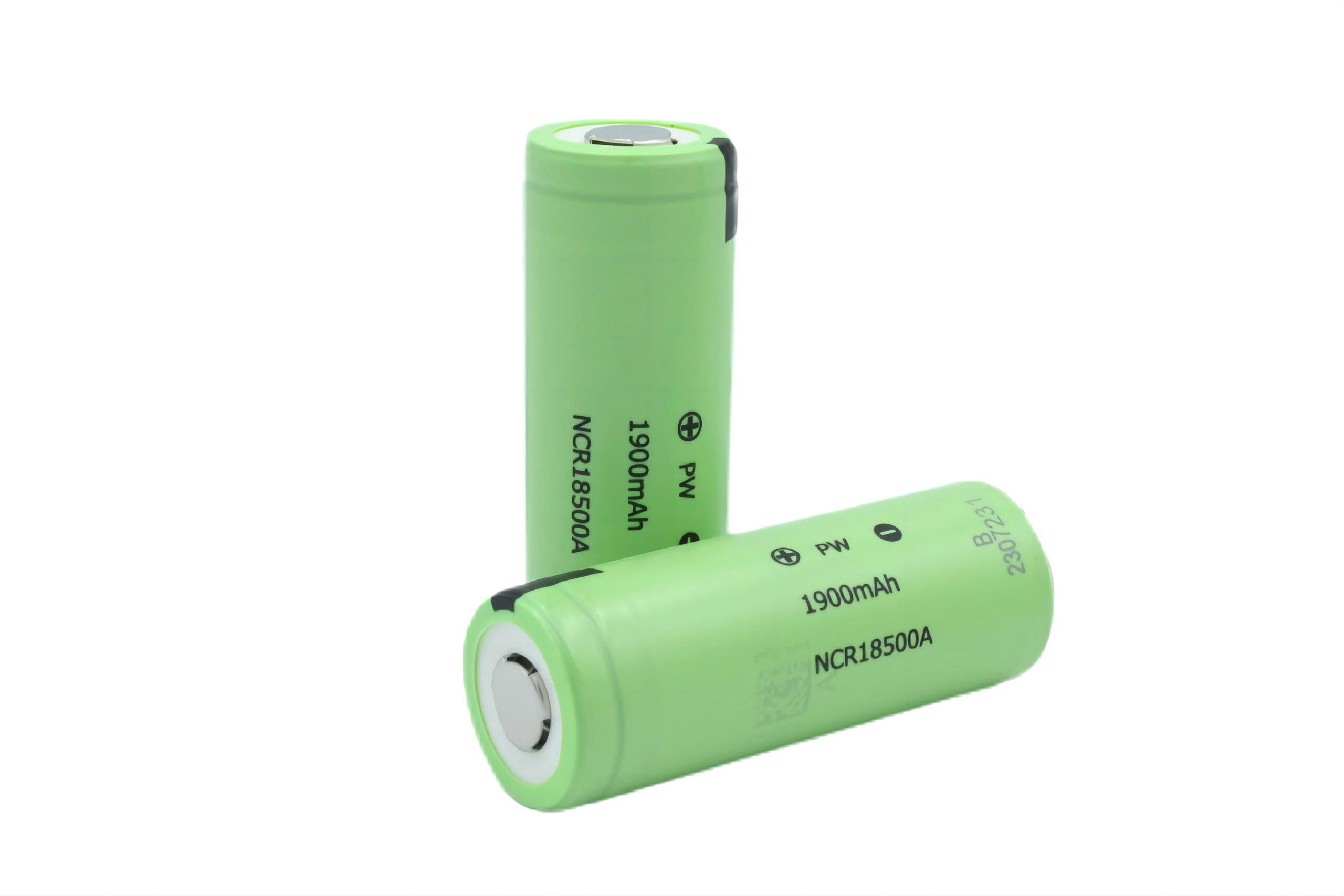

18500 1900mAh Panasonic NCR18500A rechargeable lithium-ion battery cell
Widely used in different fields, such as IOT, LED lighting, Remote control, Security device, Medical equipment, Beauty device and Home appliance…etc
- Stability with original brand cell, Panasonic, Samsung, LG, EVE, BAK...
- Customized built-in Smart BMS for multiple protection
- High energy density, Size: 18650 & 21700, Capacity: 2.0Ah--3.5Ah/cell
- High rate charge and discharge with wide operation temperature
- Comply with international standard, UL、IEC、CE、UN38.3...etc
- Support customized, support various communication mood, RS485、RS232、SMBus、CAN
| No. | Item | Specification |
|---|---|---|
| 1 | Model | NCR18500A |
| 2 | Rated Capacity | 2040mAh |
| 3 | Minimum Capacity | 1900mAh |
| 4 | Nominal Voltage | 3.6V |
| 5 | Charging Method | CC-CV (Constant Current – Constant Voltage) |
| 6 | Charging Voltage | 4.20 ± 0.03V |
| 7 | Standard Charging Current | 1350mA |
| 8 | Standard Charging Time | 180 minutes |
| 9 | Discharge Cut-off Voltage | 2.5V |
| 10 | Max Continuous Discharge Current | 3880mA |
| 11 | Weight | 34.2g |
| 12 | Dimensions | Diameter 18.50mm × Length 49.50mm |
| 13 | Operating Temperature | Charging: 0 ~ +40°C Discharging: -20 ~ +60°C Storage: -20 ~ +50°C |
Lipo Battery Cell Capacity Fast Calculator
Enter basic cell dimensions to estimate Capacity (mAh) and Energy (Wh). Results are approximate.
Assumptions (editable in code): volumetric energy density (approx.) — LCO(3.7V)≈600 Wh/L, LMO(3.7V)≈500 Wh/L, NCM(3.6V)≈620 Wh/L, LFP(3.2V)≈350 Wh/L, LCO(3.8V)≈650 Wh/L, LCO(3.85V)≈680 Wh/L. C-rate derating (usable energy): 1C=0.98, 3C=0.94, 5C=0.92, 10C=0.88, 20C=0.82. For accurate design, please validate with cell vendor datasheets and lab tests.
The product is equipped with a rechargeable battery (lithium-ion battery).
If battery fluid gets into eyes, do not rub them. Rinse thoroughly with clean water such as tap water and consult a doctor immediately.
If battery fluid leaks, do not touch fluid with bare hands. If fluid remains inside the product, it may cause malfunction. If battery fluid leaks, contact JETRAY After-sales service personnel
If fluid gets in your mouth, gargle thoroughly with clean water such as tap water and consult a doctor immediately.
If your skin or clothing comes in contact with fluid, immediately wash the affected skin or clothing with water. If you experience skin irritation, consult a doctor.
To avoid leakage, generation of heat or explosion:
Never heat, disassemble or modify the battery, nor dispose of it in a fire.
Do not attempt to pierce with a nail, hit with a hammer or step on the battery.
Do not drop the product or subject it to strong impact.
Do not get the battery wet.
Do not use, leave or store the battery in the following places:
Area exposed to direct sunlight or high temperatures and humidity
Inside of a car under the blazing sun
Near heat sources such as heat registers
Charge only with the included USB cable to avoid malfunction or fire.
The internal rechargeable battery of this product cannot be replaced by the user. The battery may have reached the end of its service life if the usage time becomes significantly shorter even after the battery has been fully charged. If this is the case, the battery needs to be repaired. Contact JETRAY After-sales service personnel for repair details.
1.What battery chemistries are available for your packs?
We offer Li-ion (NCM/NCA), LiFePO4, and LTO cells, with customization based on project needs.
2. Can you design the battery pack to fit my equipment size?
Yes, we provide structural design services to ensure a perfect fit with your application.
3. What functions does your BMS (Battery Management System) include?
Overcharge, over-discharge, overcurrent, short circuit, temperature protection, SOC/SOH display, and communication protocols (CAN, RS485, etc.).
4. Do you support fast charging?
Yes, charging rates from 0.5C to 2C are supported, depending on cell specifications.
5.What is the warranty period?
Typically 12–36 months, depending on the project agreement.
6.How should I store unused battery packs?
Keep SOC at 50–60% in a dry, ventilated environment at -10°C to 35°C.
