Battery tabs may look small, but they play a big role. They connect the battery’s inside parts to the outside circuit. Good tabs keep resistance low, control heat, and help batteries last longer. This guide explains what battery tabs are, what they are made of, how they are produced, and why they matter for EVs, storage systems, and portable devices.
What Are Battery Tabs?

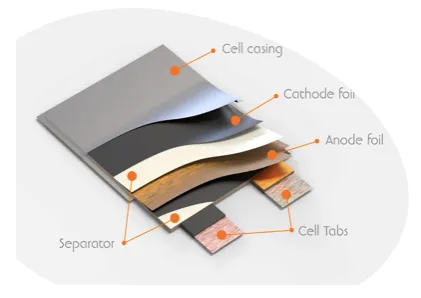

Inside a lithium-ion cell, there are two foils: aluminum for the cathode and copper for the anode. Battery tabs are welded to these foils. They act as bridges that carry current in and out of the cell.

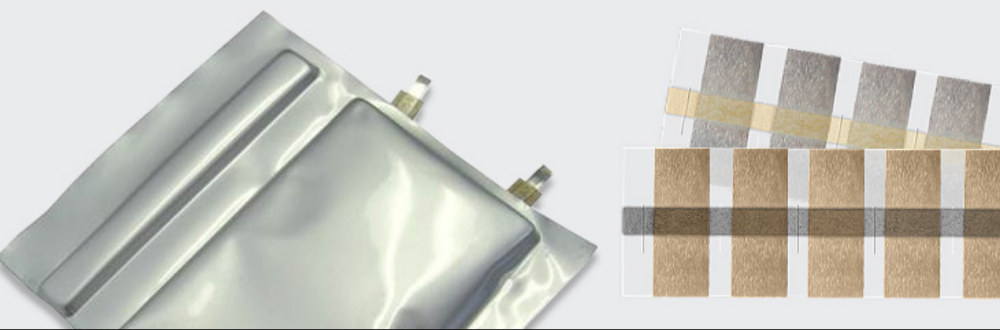

In cylindrical cells, tabs are attached to the foil edges and connected to the cap. In pouch and prismatic cells, tabs exit from the edge of the stack and are sealed in the pouch or cover plate. Their design affects current flow, heat, and efficiency.
Types of Battery Tabs
By Polarity
Positive tabs are usually aluminum because it is light, cheap, and stable with cathode materials.
Negative tabs are often nickel, nickel-plated copper, or copper because they have high conductivity and work well with the anode.
By Material and Coating
Aluminum tabs are light and corrosion-resistant.
Nickel tabs are strong and easy to weld.
Nickel-plated copper tabs mix good conductivity with a stable surface.
Some tabs have polymer coating or sealant to prevent leaks and improve sealing.Positive tabs are usually aluminum because it is light, cheap, and stable with cathode materials.
Negative tabs are often nickel, nickel-plated copper, or copper because they have high conductivity and work well with the anode.
By Construction
Single tabs are common in small cells.
Multi-tabs use several connection points to lower resistance.
Tabless designs are used in new EV batteries to reduce heat and improve current flow.
Manufacturing Process
Material Preparation
Tab material is cut to width and thickness, usually 0.1–0.3 mm. Sealant or insulation is added where the tab passes through the cell case.
Welding
Tabs are joined to foils with ultrasonic or laser welding.
Ultrasonic welding bonds metals with vibration and pressure without melting.
Laser welding is precise and works for thicker or mixed metals.

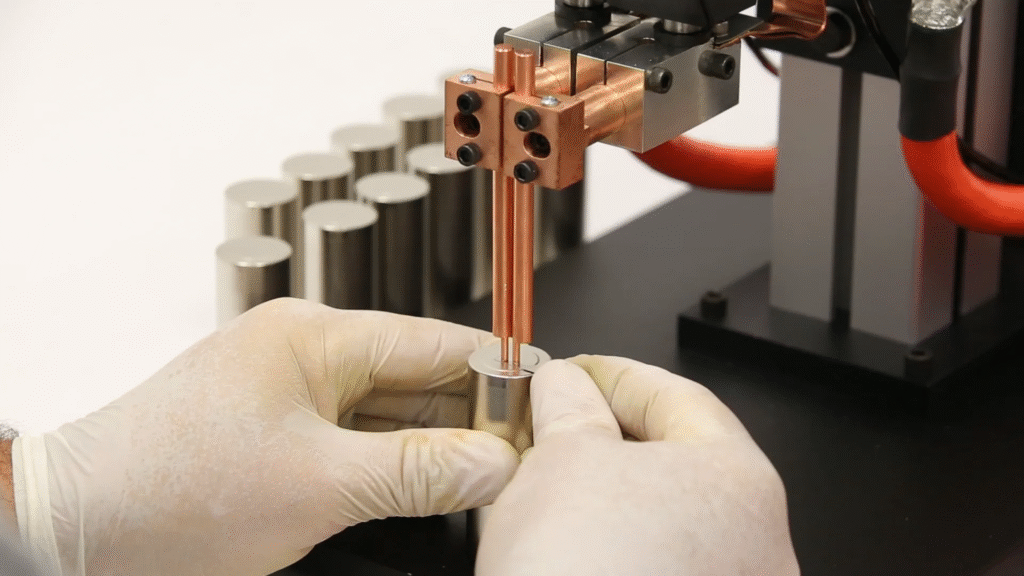

Resistance spot welding is used for some small cells but less common in EV production.
Forming and Sealing
Tabs are shaped to fit the cell layout and sealed into the cap or pouch. This keeps electrolyte inside and gives mechanical strength.
Quality Checks
Manufacturers test weld strength, measure resistance, and inspect tab size. Poor welds or misaligned tabs can cause uneven current, overheating, or failure. Modern lines use vision systems and pull tests to catch problems early.
Why Good Tab Design Matters
Electrical
A short and wide tab lowers resistance and reduces heat. Multi-tab or tabless layouts spread current more evenly.
Thermal
Tabs help move heat out of the cell. This keeps temperature balanced, which is critical for fast charging and EV safety.
Mechanical
Tabs must survive vibration and temperature cycles. Weak tabs can tear and cause failures over time.
Safety
Bad welds or high resistance can overheat and trigger safety risks. This is why QA for tab joints is strict in automotive and storage batteries.
Applications
Battery tabs are everywhere:
EVs need robust, low-resistance tabs for high power.
Energy storage systems use corrosion-resistant tabs for long life.
Consumer electronics use small, cost-effective tabs.
Medical devices need precise, high-quality tabs for safety.
Trends and Innovations
Tabless technology is growing fast. It removes separate tabs and connects the foil edge directly, lowering resistance and spreading heat better.
New coatings and alloys are also used to make tabs last longer in tough environments. Automated welding and AI inspection help keep quality high and reduce waste in large factories.
Conclusion
Battery tabs may be small, but they are essential for safe and efficient batteries. Choosing the right material and design improves performance and life span. If you work on EV packs, storage units, or portable devices, pay attention to tab design early. It will help you build safer, cooler, and more reliable batteries.
